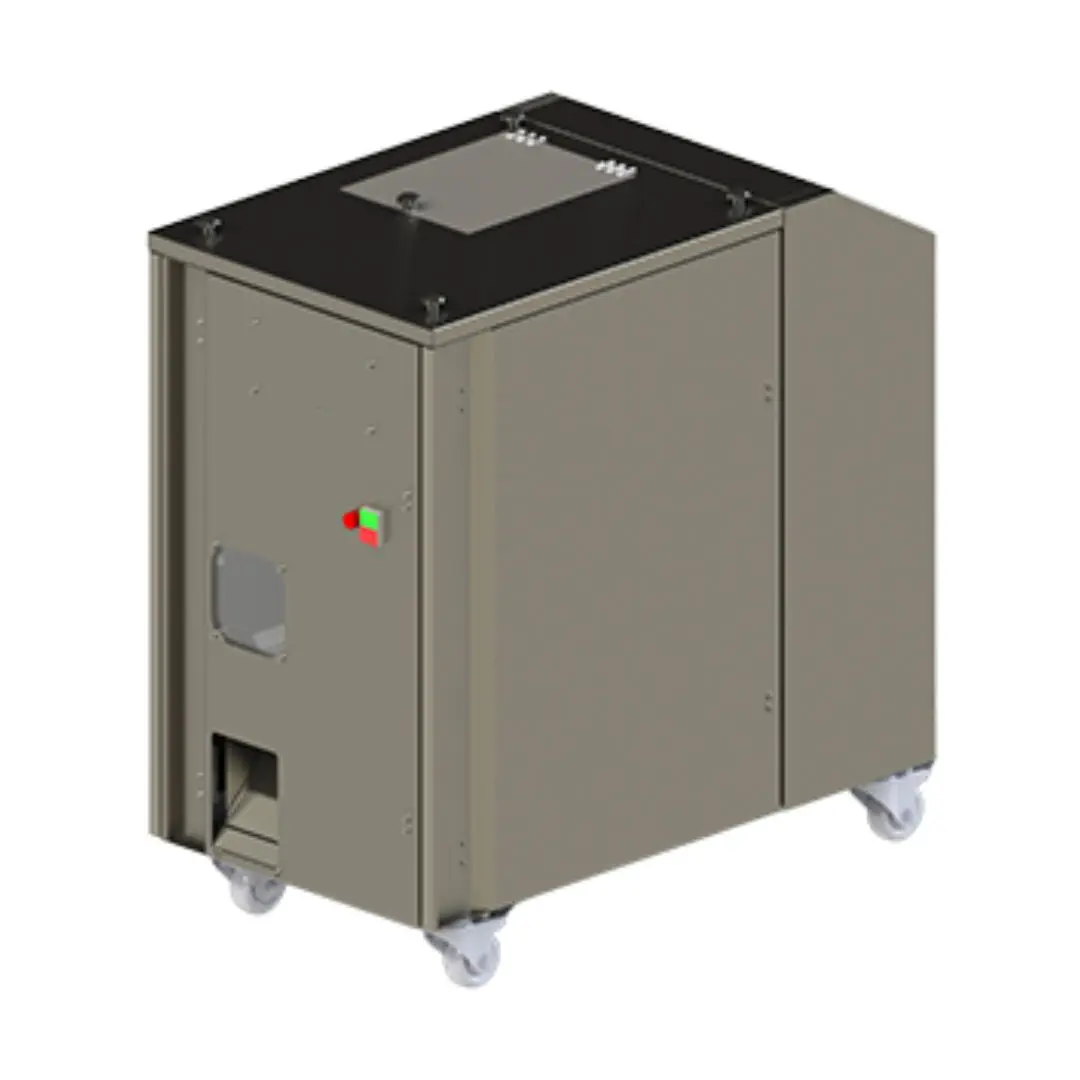

Dough Ball Making Machines – DB Series
The DB Series Dough Ball Making Machines are engineered for precision dough ball production, ensuring consistent weight, size, and quality. These machines are designed for high-volume food production environments like roti/chapati units, bakeries, and large-scale catering operations. With fully electric operation (no air compressor needed), the DB series offers ease of use, minimal maintenance, and high efficiency.
Product Details
Models: DB10 | DB20 | DB10V | DB20V
Technical Specifications
| Specification | DB10 | DB20 | DB10V | DB20V |
| Production Capacity | 1000 Nos. / Hr. (Depends on weight) | 2000 Nos. / Hr. (Depends on weight) | 1000 Nos. / Hr. (Depends on weight) | 2000 Nos. / Hr. (Depends on weight) |
| Dough Ball Weight | Adjustable 20 to 60 Gms. | Adjustable 20 to 60 Gms. | Adjustable 20 to 60 Gms. | Adjustable 20 to 60 Gms. |
| Electric Supply | 230 Volt 1 Phase | 230 Volt 1 Phase | 230 Volt 1 Phase | 230 Volt 1 Phase |
| Variable Speed | – | – | Yes – VFD | Yes – VFD |
| Electric Load Required | 0.75 HP / 0.56 kW | 0.75 HP / 0.56 kW | 0.75 HP / 0.56 kW | 0.75 HP / 0.56 kW |
| Ball Cutting Technology | Fully Electric (No air compressor required) | Fully Electric (No air compressor required) | Fully Electric (No air compressor required) | Fully Electric (No air compressor required) |
| All Contact Parts | SS304 or Food Grade | SS304 or Food Grade | SS304 or Food Grade | SS304 or Food Grade |
| All Guards | SS304 | SS304 | SS304 | SS304 |
| Chassis & Panel | MS | MS | MS | MS |
| Shaft | MS with White Zinc ElectroPlating | MS with White Zinc ElectroPlating | MS with White Zinc ElectroPlating | MS with White Zinc ElectroPlating |
| Motor | Godrej / Crompton / Equivalent | Godrej / Crompton / Equivalent | Godrej / Crompton / Equivalent | Godrej / Crompton / Equivalent |
| Gear Box | Elecon or HST | Elecon or HST | Elecon or HST | Elecon or HST |
| Bearing | KHS – Filled with High Temp. Grease | KHS – Filled with High Temp. Grease | KHS – Filled with High Temp. Grease | KHS – Filled with High Temp. Grease |
| Electrical Parts | Schneider | Schneider | Schneider | Schneider |
| Machine Size (L×W×H) | 3′ × 1′ 9″ × 3′ Ft. | 3′ × 1′ 9″ × 3′ Ft. | 3′ × 1′ 9″ × 3′ Ft. | 3′ × 1′ 9″ × 3′ Ft. |
| Machine Weight | 115 Kg | 115 Kg | 116 Kg | 116 Kg |
